I-Beam Manufacturer & Exporter in India
Sarthak Ispat Private Limited is a trusted I-Beam manufacturer, supplier, and exporter in India, supplying structural steel I-sections for infrastructure, industrial buildings, EPC projects, power plants, heavy engineering, and international construction markets.
Our I-Beams are designed for critical load-bearing applications where structural integrity, dimensional accuracy, and long-term performance are essential. All I-Beams supplied by Sarthak Ispat comply with IS 808 and IS 2062 standards and are suitable for both domestic and export EPC requirements.
What is an I-Beam?
An I-Beam is a hot-rolled structural steel section characterized by its distinct “I” shaped cross-section, consisting of two horizontal flanges connected by a vertical web.
This geometry allows the beam to efficiently resist bending moments, shear forces, and axial loads while minimizing steel consumption. I-Beams are therefore one of the most widely used structural members in modern construction and heavy engineering.
Structural Engineering Principles of I-Beams
The design of an I-Beam places material where stresses are highest. Flanges resist bending stresses, while the web transfers shear forces. This results in high strength-to-weight efficiency and predictable structural behavior.
- Excellent bending resistance
- Efficient shear force transfer
- Reduced self-weight compared to solid sections
- Reliable performance under static and dynamic loads
Types of Structural Steel I-Beams
Depending on load requirements and structural design, I-Beams are classified into the following categories:
- ISMB – Indian Standard Medium Weight Beam
- ISWB – Indian Standard Wide Flange Beam
- ISHB – Indian Standard Heavy Beam
- WPB – Wide Plate Beam (used in heavy and export projects)
I-Beam Size Range (Manufactured & Supplied)
The following size range represents Sarthak Ispat’s actual supply capability for structural steel I-Beams across different categories.
| I-Beam Category | Designation Range | Typical Structural Applications |
|---|---|---|
| ISMB – Medium Weight I-Beams | ISMB 100×75 to ISMB 600×210 | Industrial sheds, warehouses, commercial buildings, mezzanine floors, and medium-load structural frameworks |
| ISWB – Wide Flange I-Beams | ISWB 150 to ISWB 600 | Large span structures, industrial buildings, and applications requiring higher lateral stability |
| ISHB – Heavy I-Beams | ISHB 116×100 to ISHB 350×350 | Infrastructure projects, power plants, heavy industrial structures, and high-load EPC works |
| WPB – Wide Plate Beams | WPB 203×152 to WPB 360×160 | Bridges, heavy structural frames, export EPC projects, and load-intensive installations |
Steel Grades & Metallurgical Properties
- IS 2062 E250 – General structural applications
- IS 2062 E350 – Heavy and dynamic load structures
- Controlled chemical composition
- High ductility and excellent weldability
Dimensional Accuracy & Tolerances
- Controlled flange width and thickness
- Uniform web thickness
- Straightness and camber checks
- Cut-to-length accuracy for project supply
Fabrication & Erection Compatibility
- Suitable for welding, bolting, and machining
- Compatible with standard fabrication practices
- Efficient on-site erection
- Ideal for pre-engineered and conventional buildings
Handling, Storage & Transportation
- Store on level supports to avoid distortion
- Avoid direct contact with soil or standing water
- Use proper lifting points during handling
- Export-safe bundling and packaging
Applications of Structural Steel I-Beams
- Industrial sheds and warehouses
- Infrastructure and metro projects
- Power plants and refineries
- Commercial and high-rise buildings
- Heavy engineering and crane girders
- Export EPC and overseas construction projects

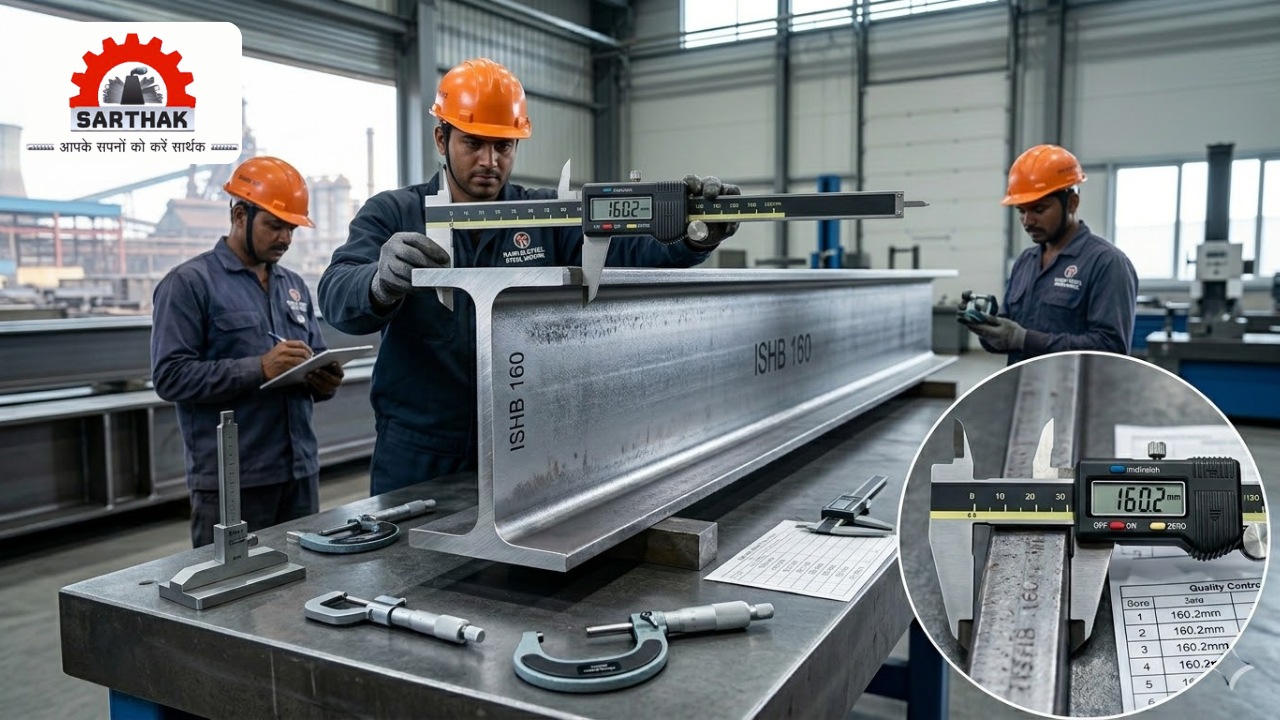

Quality Assurance & Testing
- Chemical and mechanical testing
- Dimensional inspection
- Ultrasonic testing (on request)
- Mill Test Certificate (MTC) with full traceability
Standards & Compliance
- IS 808 – Dimensions for structural steel sections
- IS 2062 – Structural steel grades
- BIS compliance
- Export documentation support
Procurement, Logistics & Export Capability
- Bulk and project-based supply
- EPC coordination and scheduling
- Domestic logistics and port dispatch
- FOB, CIF, and project-specific delivery terms
Source Structural Steel I-Beams with Confidence
For pricing, technical discussions, bulk quantities, or export coordination, connect with Sarthak Ispat.
Proceed to Product Inquiry
I-Beam Technical Specifications & Section Properties
Sarthak Ispat supplies structural steel I-Beams with precise sectional properties, ensuring predictable structural performance in engineering design and load calculations.
| Parameter | Typical Range |
|---|---|
| Depth (D) | 100 mm – 600 mm |
| Flange Width (B) | 75 mm – 250 mm |
| Web Thickness (Tw) | 5 mm – 14 mm |
| Flange Thickness (Tf) | 7 mm – 25 mm |
| Weight per Meter | 10 kg/m – 150+ kg/m |
| Steel Grade | IS 2062 E250 / E350 |
| Standard | IS 808 / BIS |
Complete sectional data including moment of inertia and section modulus is available for structural design and engineering approvals.
I-Beam vs H-Beam vs RS Joist – Structural Comparison
Understanding the difference between I-Beams, H-Beams, and RS Joists helps in selecting the right section for structural efficiency and cost optimization.
| Feature | I-Beam | H-Beam | RS Joist |
|---|---|---|---|
| Load Capacity | High | Very High | High |
| Flange Width | Narrow | Wide | Moderate |
| Weight | Moderate | Heavy | Moderate to Heavy |
| Applications | General structures | Heavy structures | Industrial structures |
Advantages of I-Beams in Structural Construction
- High strength-to-weight ratio
- Efficient bending resistance
- Reduced material consumption
- Suitable for long span structures
- Easy fabrication and erection
- Widely accepted in global EPC projects
Load Bearing & Structural Performance
I-Beams are engineered to efficiently carry bending moments and shear forces. Their flange design resists bending stress, while the web transfers shear loads, making them ideal for load-intensive applications.
- Optimized for bending moment resistance
- High shear load capacity
- Stable under dynamic and static loads
- Reduced deflection in long spans
Real Project Use Cases of I-Beams
Sarthak Ispat I-Beams are widely used in large-scale infrastructure and industrial projects:
- Pre-engineered buildings (PEB structures)
- Bridge construction and flyovers
- Power plants and refineries
- High-rise commercial buildings
- Crane girders and heavy load structures
- Export EPC projects in Middle East & Africa

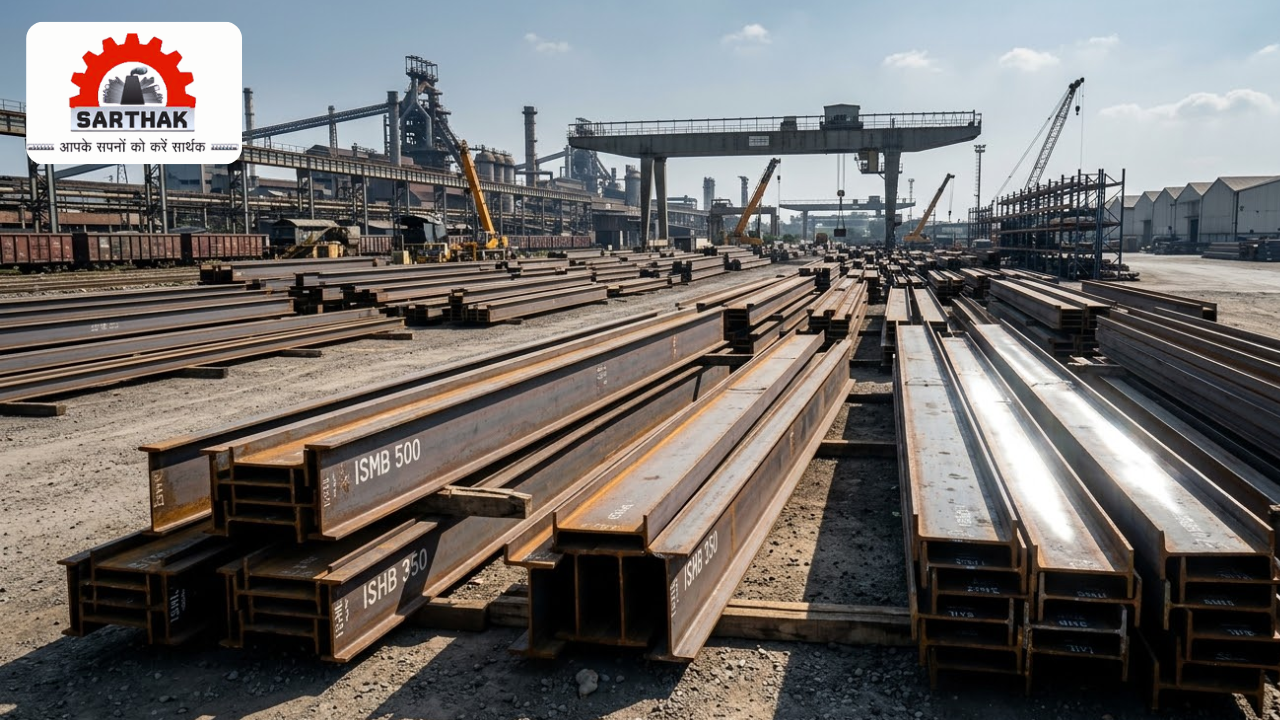

Packaging, Marking & Dispatch of I-Beams
- Bundle and loose supply options
- Proper marking with heat number
- Optional anti-corrosion coating
- Truck, rail, and container transport
- Seaworthy export packaging
I-Beam Exporter from India – Global Supply Capability
Sarthak Ispat is a leading I-Beam exporter in India, supplying structural steel beams to global markets.
- United Arab Emirates (UAE)
- Saudi Arabia
- Oman & Qatar
- African countries
- Southeast Asia
Complete export documentation including MTC, invoice, packing list, and certificate of origin is provided.
Certifications & Quality Documentation
- Mill Test Certificate (MTC)
- BIS compliance certification
- ISO quality standards
- Chemical and mechanical test reports
- Third-party inspection (SGS / TUV on request)
Frequently Asked Questions – I-Beams
What is the weight of an I-Beam per meter?
The weight depends on section size and ranges from around 10 kg/m to over 150 kg/m for heavy sections.
What is the difference between ISMB and ISHB?
ISMB refers to medium weight beams, while ISHB represents heavy beams with higher load capacity.
What are I-Beams used for?
I-Beams are used in structural frameworks, industrial buildings, bridges, and heavy engineering projects.
Do you supply I-Beams for export projects?
Yes, we provide bulk supply with full export documentation for EPC and international infrastructure projects.
